小型電気ホイスト

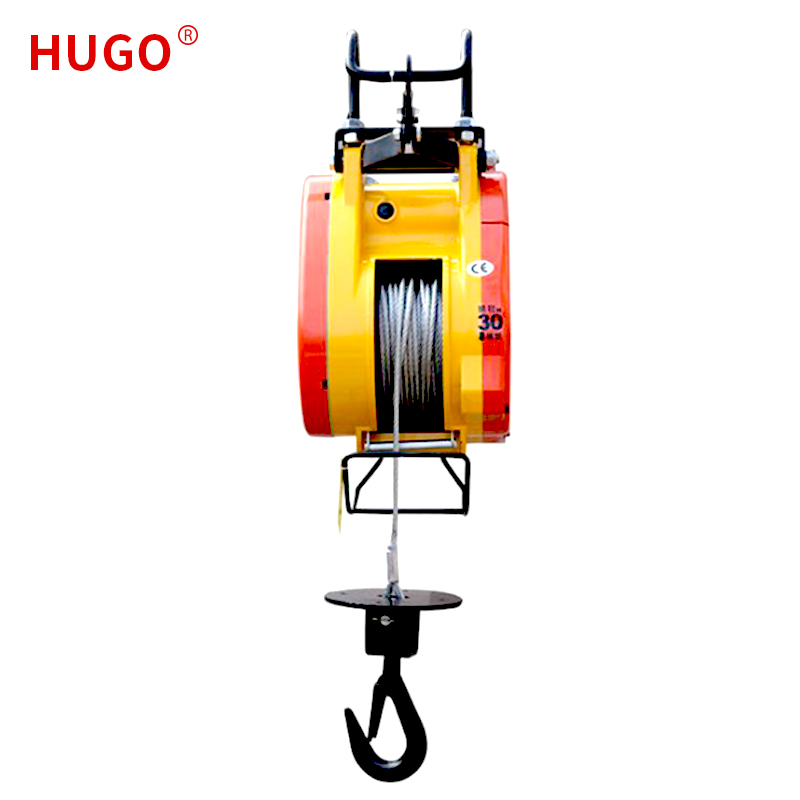

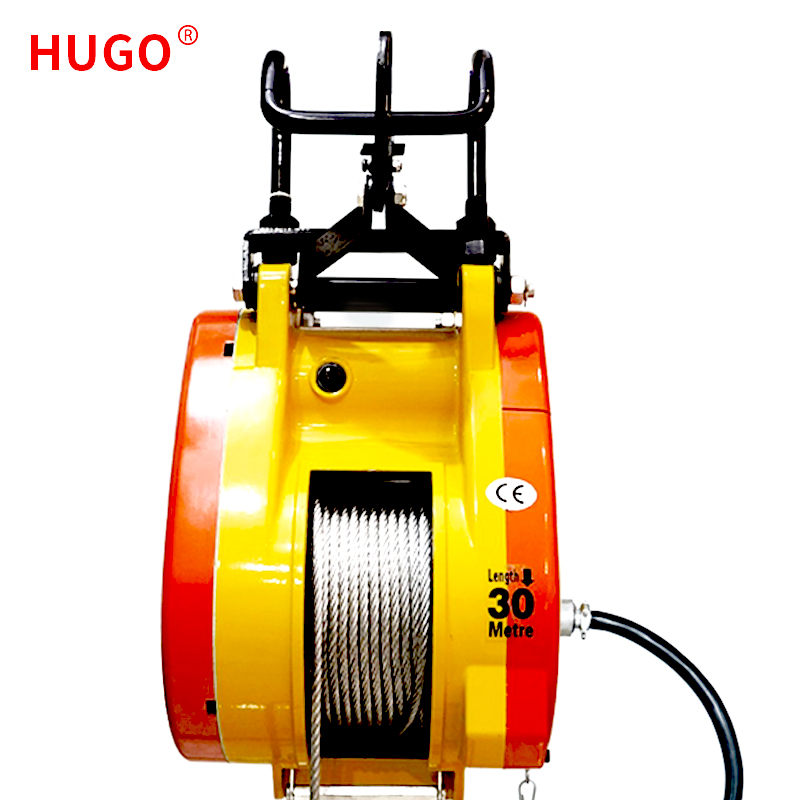

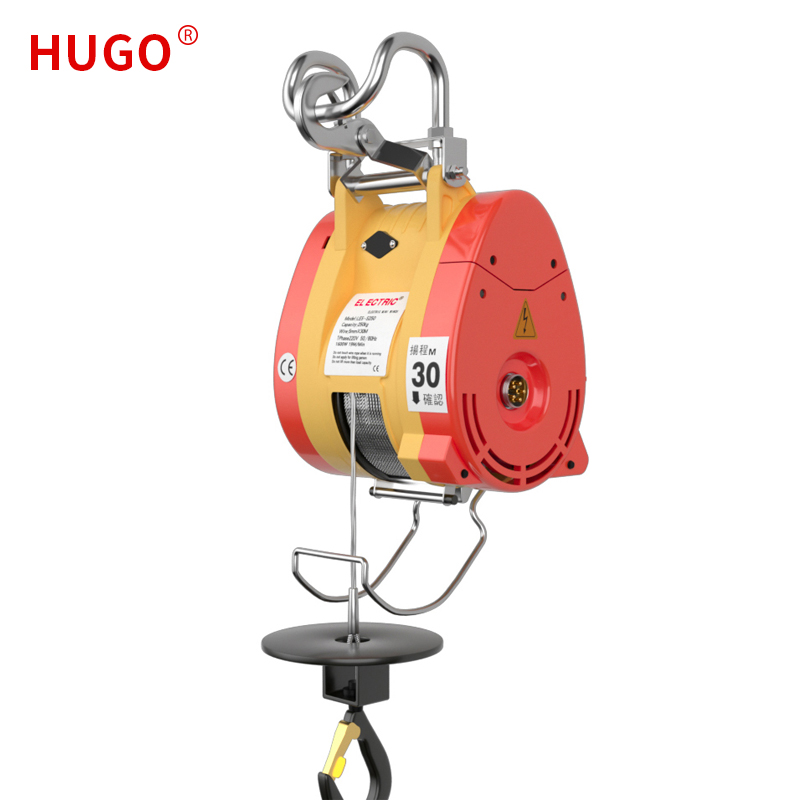

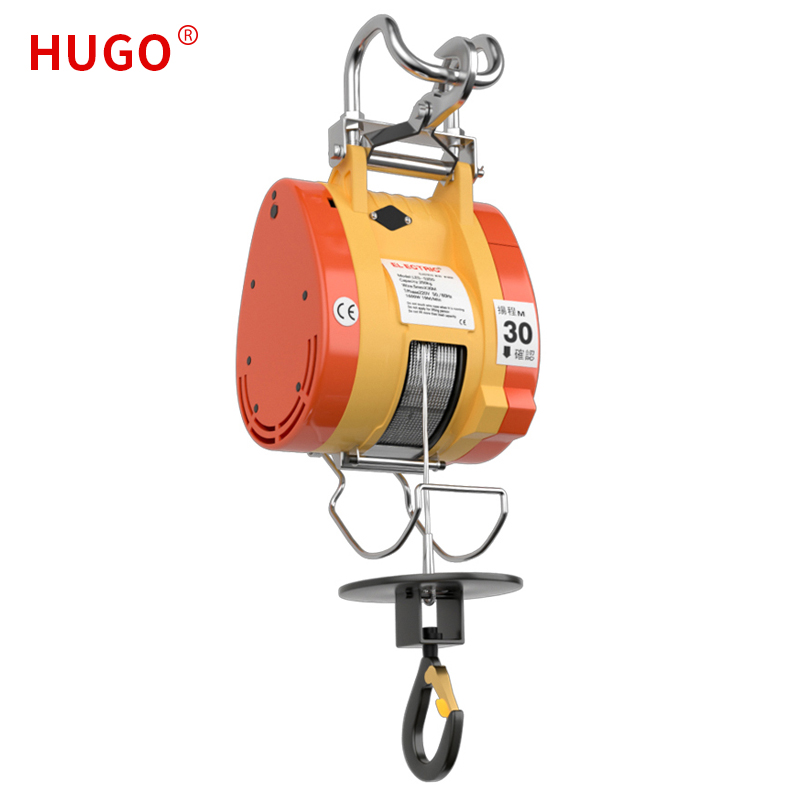

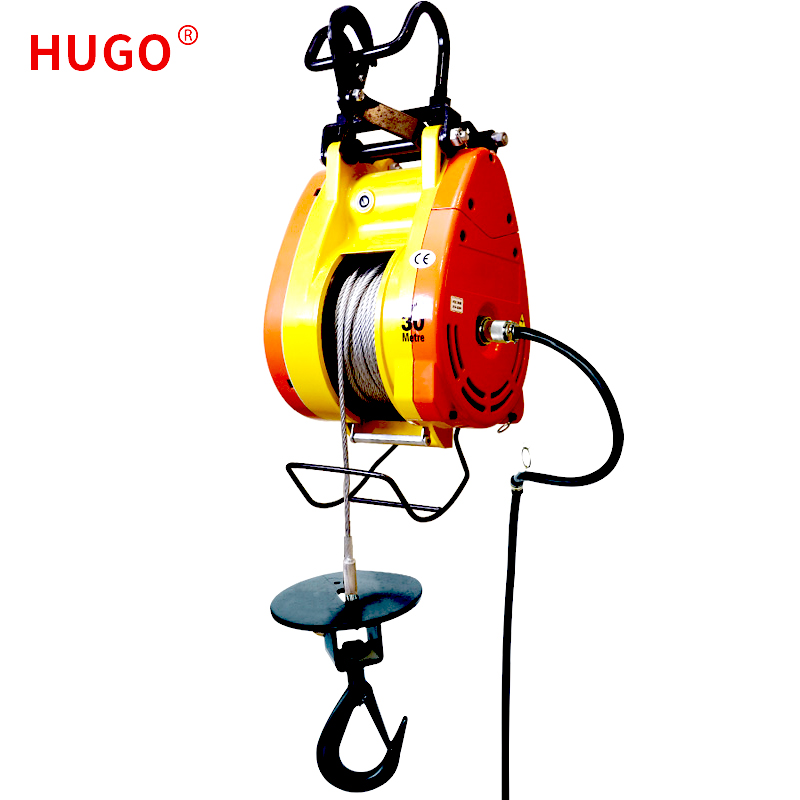

The shell of Small Electric Hoist is made of aluminum, which has better heat dissipation. The steel wire rope carries heavy objects. The motor is a motor with greater strength and faster speed, about 23m/Min. It is suitable for engineering hanging, factory hoisting operations, civil engineering, water and electricity piping installation, warehousing, hoisting in hotels and shopping malls, etc. Small Electric Hoist has a wide range of uses.The structure principle of Small Electric Hoist is the same as other electric hoists, but its production process is more complicated and the materials are relatively expensive.Which has better heat dissipation function.The products bearing frame is made of cast steel, which can bear heavy weight without being damaged. Small Electric Hoist has an over-winding prevention device. When the wire rope is rolled to the upper limit, the power will be automatically cut off, and Small Electric Hoist will automatically stop immediately, which can prevent collisions. It also has a reverse winding prevention device, which has the function of preventing reverse rotation, and automatically stops immediately when a reverse rotation occurs. It uses the motor as the power to decelerate instantly when the power is cut off. At the same time, the mechanical ratchet brake is activated. The dual brake device prevents it from braking failure, which greatly enhances the usability.

Product specification:

Small Electric hoist Feature And Application:

The Small Electric Hoist showcases an aluminum shell designed for improved heat dissipation, providing optimal cooling. Featuring a robust steel wire rope, it efficiently handles heavy loads. Unlike standard electric wire rope hoists that typically operate at a lifting speed of 8 meters per minute, the Small Electric Hoist boasts an impressive speed of about 23 meters per minute, signifying a significantly faster lifting capability.

Small Electric hoist Details:

Motor

Adopting high efficient carbon brush motor; high powered, good working performance. Two voltage optional, (110V/220V), in single phase. Made by enamelled wire , can reach to 200 °C heat resistance grade, specifically designed for high and rough working situation.

Brake

Dual ratchet machenical gear group with clutch, high friction factor copper oiled brake , durable and stable. Electric-controlled, combined as dual brake system. High brake force once power off or failure detected. Safe and ling lifetime.

Wire Rope

High grade imported steel wire, max 6 times safety factor, high tensile force but strong force, safe and long lifespan.

Gear Group

High efficient few module gear design, good performance on noise control. High strength alloy steel material made, good performance on wear resistance.

Lifting Hook

Die-High strength alloy steel forged lifting hook. reach to 5 times safety factors.Surface paiting or high performance on corrosion resistance. Strong and long lifespan.

Product qualification:

Shanghai Yiying Crane Machinery Company is a specialized manufacturer of small electric hoist in China. We developed through advanced technology from foreign countries and now have profound experience and intense power. We can provide customers with highly efficient, secure and complete loading, unloading and carrying equipment.Our main products include vehicle hydraulic trail boards, hand pallet trucks, hand small electric hoist, electric stackers, walked hydraulic stackers and hydraulic lift tables. We can develop new products according to customers' demands.70% of our vehicle hydraulic trail boards are sold to Hong Kong, Macao, Taiwan and other countries and regions. Hugo manual pallet lifter has become the first choice of many famous enterprises and government departments. We are also one of the biggest factories that produce manual pallet lifter in China with an annual production capacity of 100,000pcs. "YIYING" brand manual pallet lifter passed the CE certifications by TUV in Germany.
